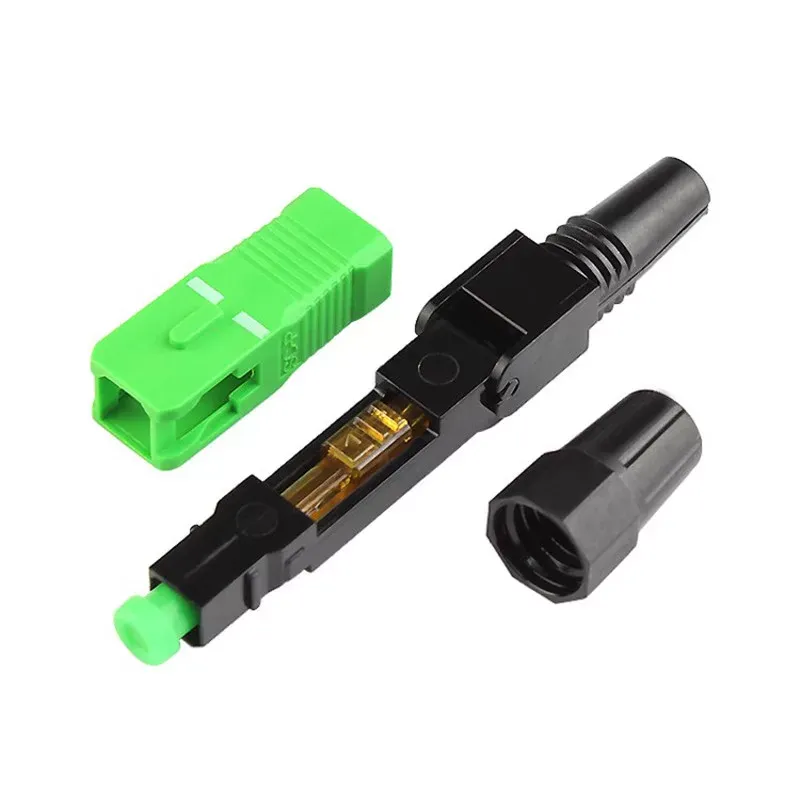

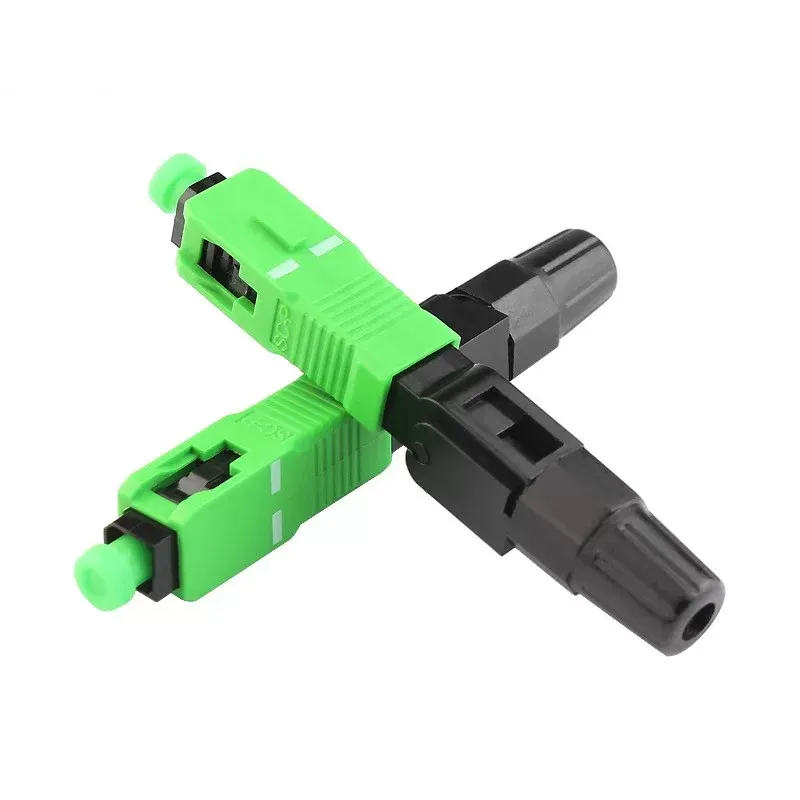

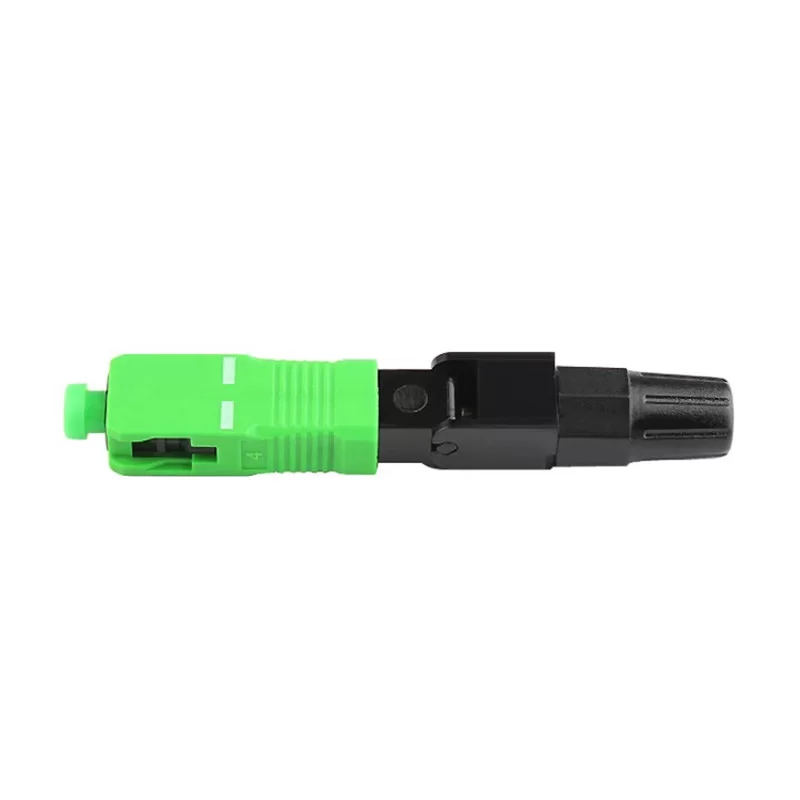

SC APC fiber optic Fast Connector ftth quick assembly connector
Fiber optic fast connector: A high performance, easy to use mechanical fiber optic connector. It can be widely used in FTTH drop cable connection and inter-connection. It has the same connection performance as the standard SC connector,and can be connected directly to the standard SC adapter.
| Category | Specification |
| Aoolicable For | Drop cable. Indoor cable |
| Fiber Mode | Single mode or Multi mode |
| Operation Time | About 50S(no fiber cut) |
| Insertion Loss | ≤0.5dB |
| Insertion Loss Typical Value | 0.3dB |
| Return Loss | ≥50dB |
| Fastening Strength Of Naked Fiber | ≥5N |
| Tensile Strength | ≥50N |
| Reusable | ≥10 times |
| Operating Temperature | -40 ~ +85 ℃ |
| On-line Tensile Strength(20N) | ΔIL≤0.3dB |
| Mechanical Durability(500 times) | ΔIL≤0.3 |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | ΔIL≤0.3 |
