Model
|
FST-18H & 16H
|
|
Appicable Fibers
|
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
|
|
Compatible Fiber/Cable
|
0.25-3.0mm/Indoor Cable
|
|
Cleaved Length
|
Coating Diameter: 0.125-1mm/Cleave length:8-16mm
|
|
Splicing Mode
|
Preset 41 splicing modes, storable 100 modes
|
|
Typical Splice Loss
|
SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard)
|
|
Return Loss
|
≥60db
|
|
Lighting
|
Three powerful white LED and iluminated keypads
|
|
Splicing Time
|
SM fast mode: 6s
|
|
Estimated Splice Loss
|
yes
|
|
Protection Sleeve Length
|
20-60mm
|
|

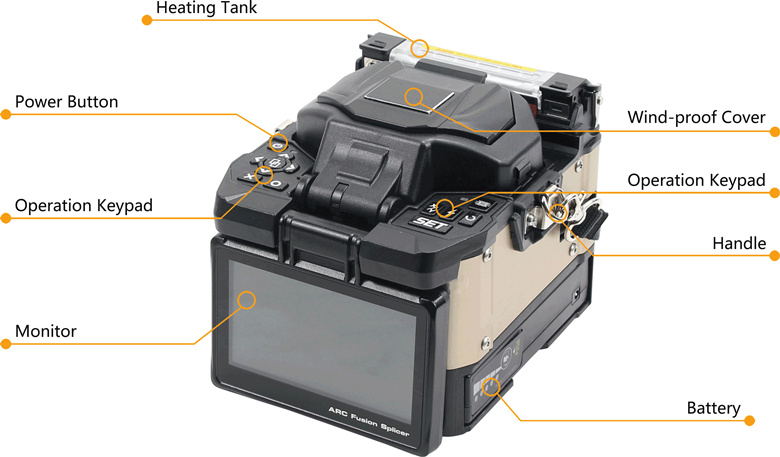

Heating tank
|
Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes
|
|
Heating Time
|
Fast heating time: 13s, Typical Heating Time: 30s
|
|
Results Storage
|
1 000 records
|
|
Tension Test
|
1.5-2.0N
|
|

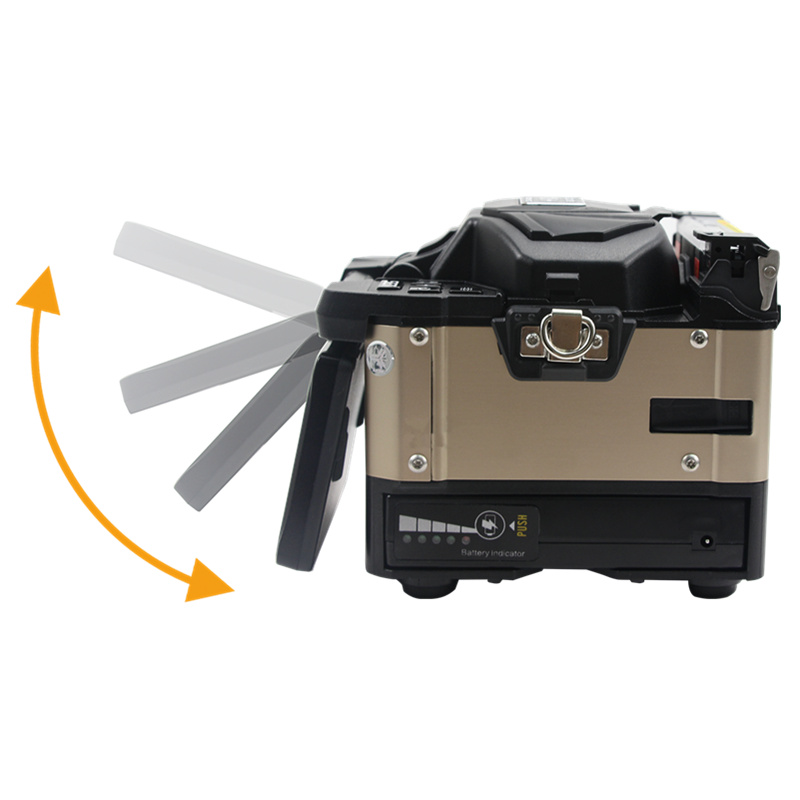

Display
|
90° bi-directional view,4.3" high resolution display with touch screen
|
|
Fiber View & Magnification
|
X,Y,XY,X/Y:380×Magnification
|
|
Power Supply
|
AC Input 100-240V,DC Input 12-15V
|
|

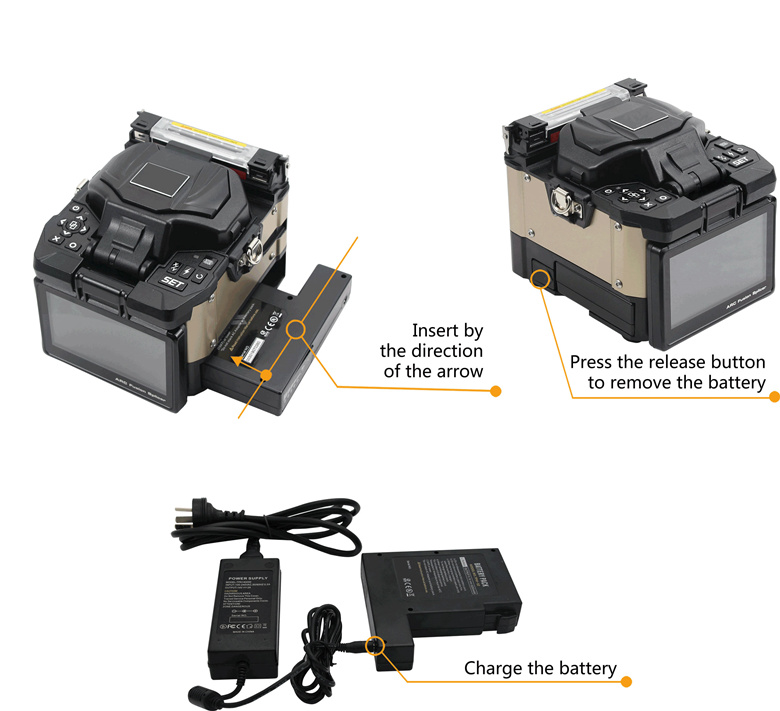

Battery capacity
|
4800mAh battery capacity
|
|
Heating times
|
typical above 180 times(splicing+heating)
|
|
Operating Methods
|
Button/Touch Screen
|
|
Automatic Calibration
|
Automatic ARC calibration by air pressure and temperature
|
|
Electrode Life
|
3000 ARCS, can be extended by using an electrode grinder
|
|

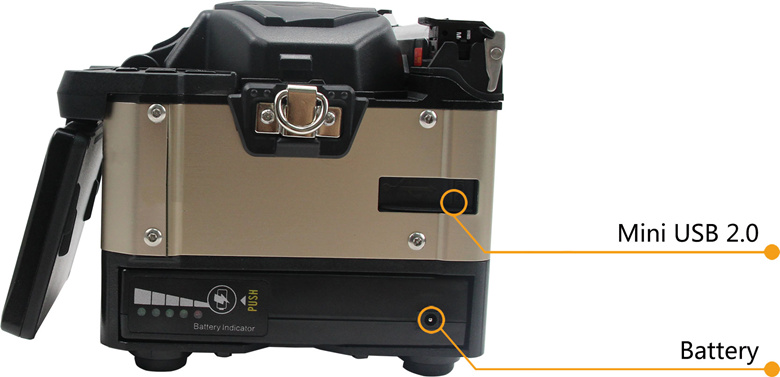

Terminal
|
USB 2.0
|
|
Weight
|
1.8 KG (including rubber Bumper)
|
|
Dimension
|
140W*165L*138Hmm (including rubber Bumper)
|
|
Operating Condition
|
Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
|
|
Storage Condition
|
0~95% relative humidity, -40~80℃; battery storage: -20~30℃
|
