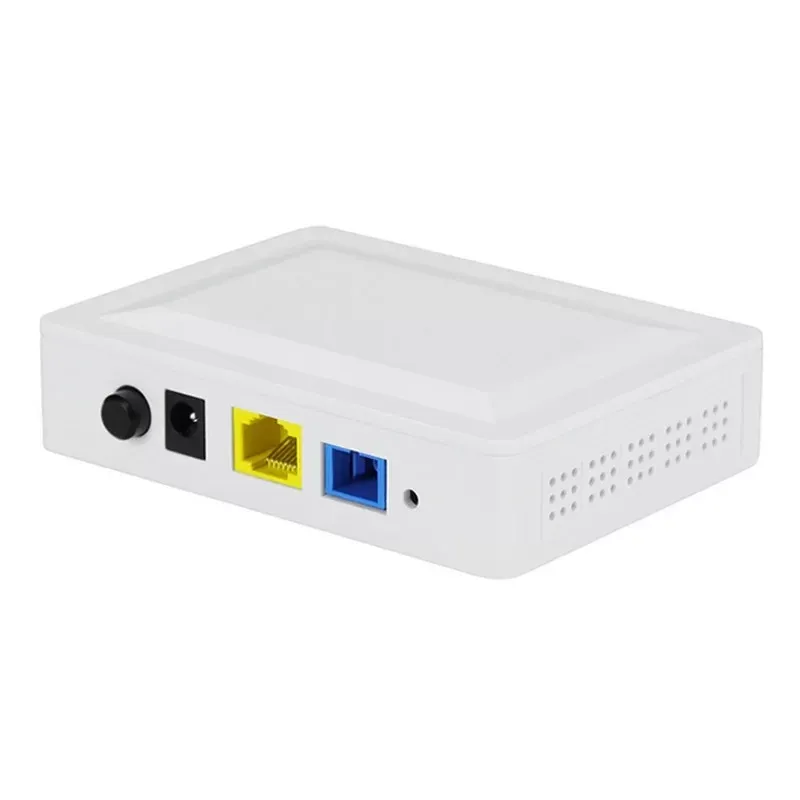

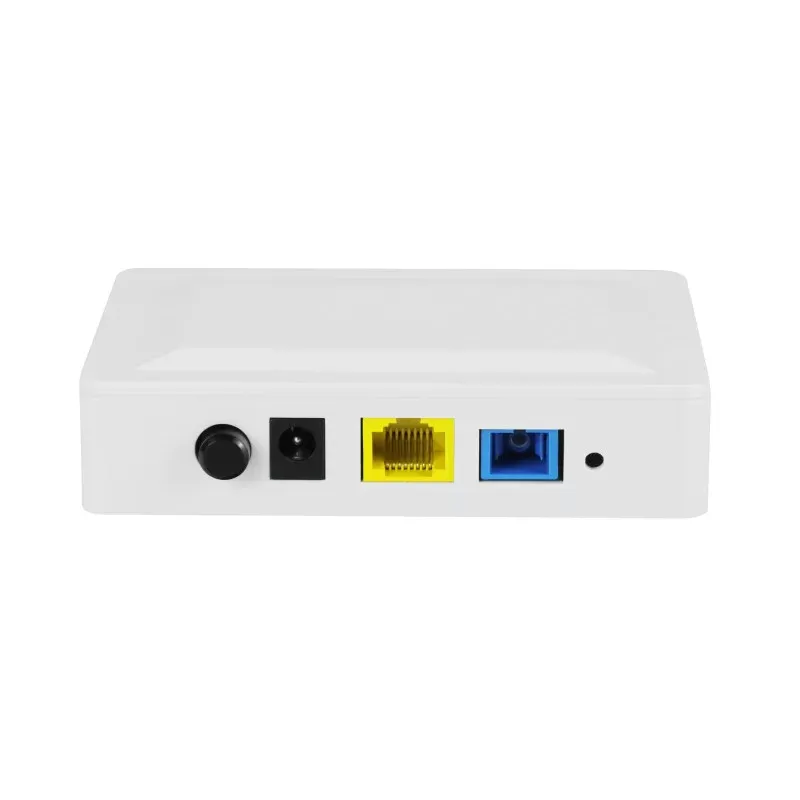

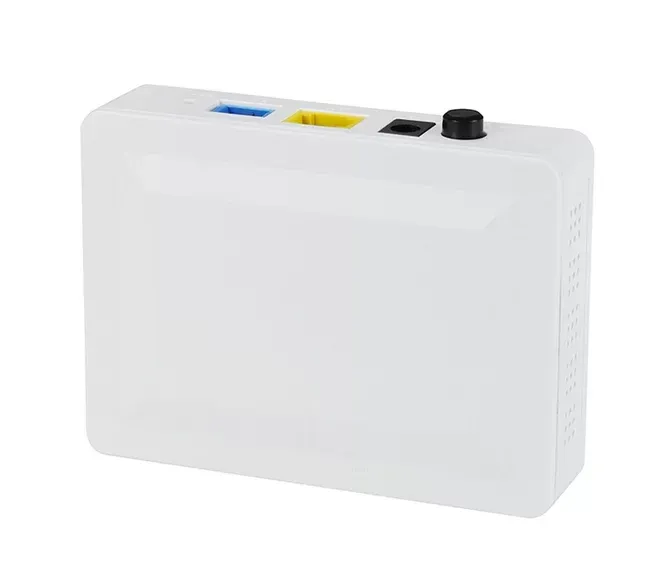

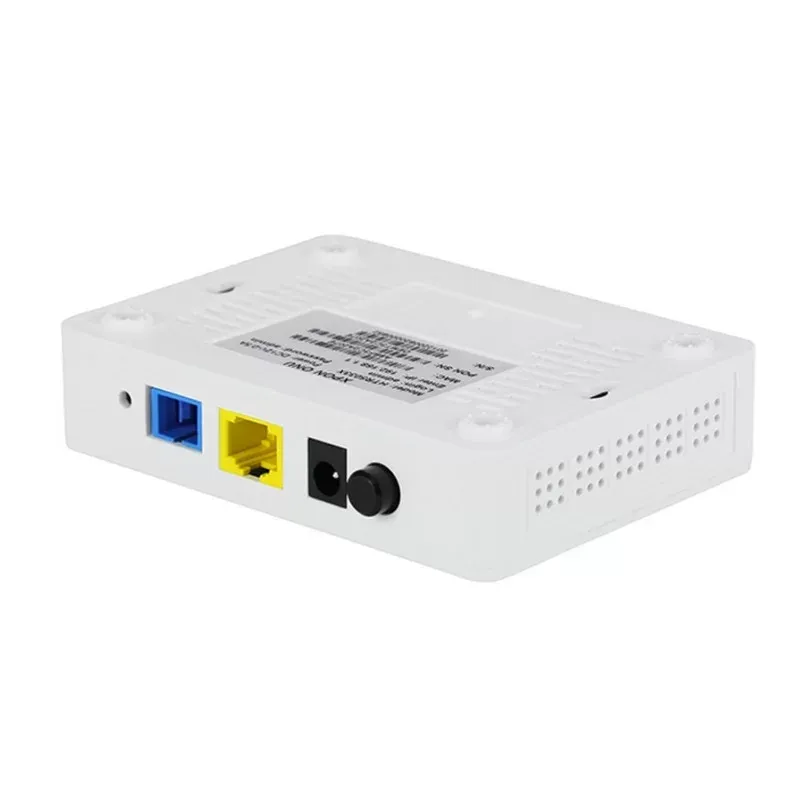

HTR5033X is designed as HGU (Home Gatewa Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
HTR5033X is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
HTR5033X adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
| Technical item | Details |
| PON Interface | 1 GPON BOB （Bosa on Board） |
| Receiving sensitivity: ≤-28dBm | |
| Transmitting optical power: +1~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| Chip Spec | RTL9601D ,CPU 300MHz,DDR2 32MB |
| Flash | SPI Nor Flash 16MB |
| LAN Interface | 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector |
| LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
| Push-Button | 2,For Function of Power on/off,Reset |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/0.5A |
| Power Consumption | <3W |
| Dimension | 120mmx78mmx30mm(L×W×H) |
| Net Weight | 0.13Kg |
