Model
|

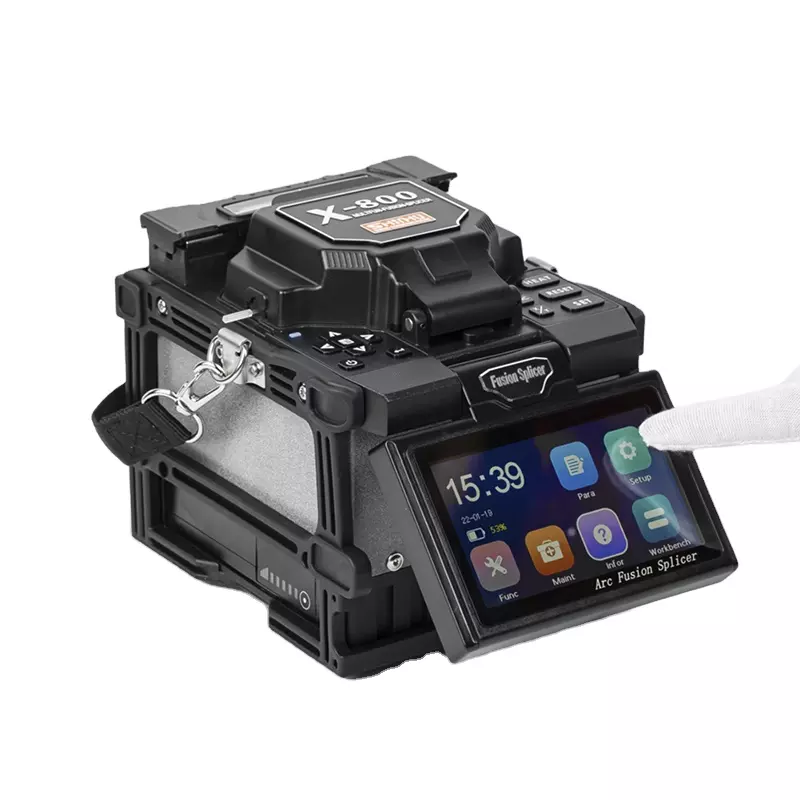

X-800 Fiber Splicing Machine
|
Applicable fiber
|
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
|
Diameter of cladding
|
80 -150μm
|
Diameter of coating
|
160-900μm
|
Typical splice loss
|
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
|
Return loss
|
> 60dB
|
Fibe cleaved length
|
5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
|
Splicing program
|
40 groups
|
Operate mode
|
Automatic/Manual
|
Auto-heating
|
Available
|
Typical splicing time
|
6 seconds
|
Typical heating time
|
20 seconds
|
Fiber magnification
|
250X (X or Y view), 125X (X and Y view)
|
Display screen
|
4.3 inch color LCD monitor
|
Records storage
|
4000 results
|
Loss evaluation
|
Available
|
Tension test
|
1.8-2.2N
|
Interface
|
GUI menu interface, easy for operation
|
Battery
|
5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging
|
Power supply
|
Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
|
Electrodes life
|
More than 4000 ARC discharges, can be replaced conveniently
|
Ternimal
|
USB2.0 port, for software upgrading and records exporting
|
Operating conditions
|
Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
|
Dimension
|
157mm(L) * 136mm(W) * 140mm(H) (including rubber armor)
|
Weight
|
2.10kg (including battery)
|
Standard Accessories
|
1. Main machine with battery inside
2.Carrying Case(orange, black, green)
3.X-50C Fiber cleaver
4.Fiber miller stripper 5.Drop cable stripper
6.Cooling tray
7.Power adapter
8.Power cord
9.Spare electodes
10.USB user manual
11.Strap
12. Alcohol pump
|
Q1. What is your company product?
A: Our main product ranges Fusion Splicer,SFP+ Modules,GEPON OLT, GEPON XPON ONU, with good quality and factory direct price.
Q2. Can I customized the products?
A: some products are customized, any specification will be accepted. Please kindly tell our your request.
Q3. Can I get a sample first?
A: Of course, you can get a sample first, I make sure you will reorder and be happy with our high quality goods.
Q4. What is your delivery time about the production?
A: For the sample, general 3-7 days. For the production, within 30 days (per your order quantity).
Q5. How can I contact you?
A: Send your Inquiry Details in the Below, Click "Send" Now........don't hesitate.
1. We accept PayPal, Trade Assurance, MonryGram, Western Union and Bank T/T.
2. Our Quotation includes goods cost, shipping cost and trading charges.
3. The buyers should be responsible for the trading charges.
4. The prices we quoted are correct at this time, but maybe subject to change after few days because of the currency fluctuations and the order quantity.
