Name: Visual Fault Locator Ftth Tools BSL53 Series VFL 5mw/10mw/20mw/30mw/50mw
Brand: SHENZHEN BESTWE ELEC TECH LTD. SURPATEK FIBER FLASH FIBER OPTICAL FUSION SPLICER MANUFACTURER FIBER ORIGIN
SKU: BSL53
Availability: InStock
Rating: 5 (1 reviews)

Home > Fiber Testers & Tools > Visual Fault Locators

Visual Fault Locator Ftth Tools BSL53 Series VFL 5mw/10mw/20mw/30mw/50mw

Description Review

Description

Introduction

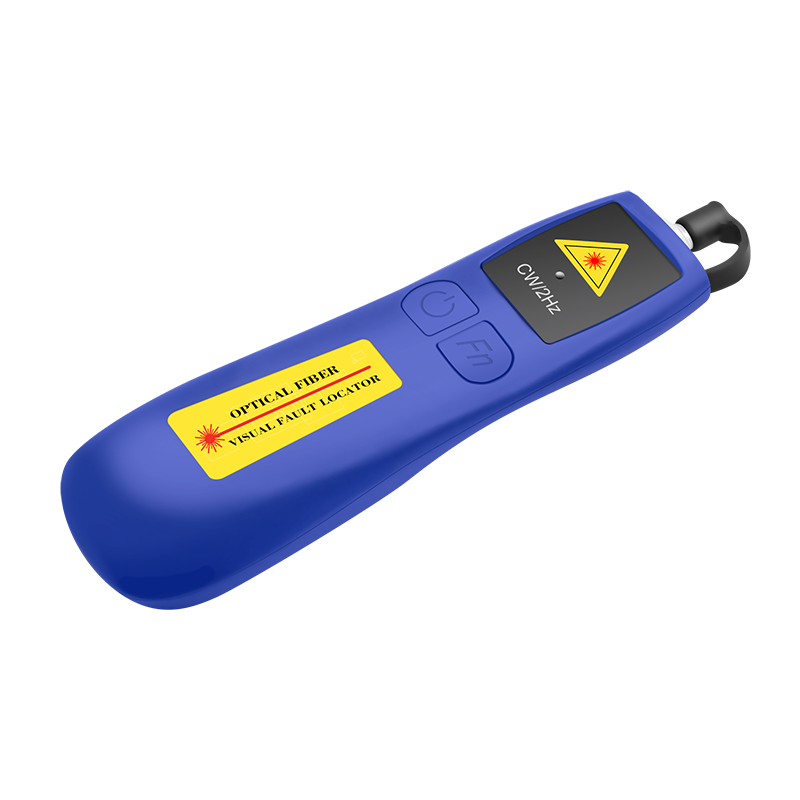

BSL53 Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator. A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc.

If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point. BSL53 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a
little different on different fiber coat and color.

Features

1）Totally comply with the human engineering design. Small, portable and durable 2）Standard multi-adaptor can be applied to connect with almost any adaptor type. Also provides interchangeable fiber adaptors of several common types 3）Higher output laser power 4）Integrated with continuous wave and 2Hz modulated wave output function

Note

1）It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing. 2）The output power is figured out by multi-mode optical fiber at 23℃±3℃. 3）Detecting range will be different with different fibers. 4）Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.

Model

BSL53-1

BSL53-10

BSL53-20

BSL53-30

Laser Launcher Level①

CLASS IIIA

CLASS IIIB

CLASS IIIB

CLASS IIIB

Output Power②

≥1mW

≥10mW

≥15mW

≥30mW

Detecting Range③

About 5km

About 12Km

About 14km

About 15km

CW Mode Battery Life④

About 13 hours

About 6 hours

About 5 hours

About 3 hours

2Hz Mode Battery Life④

About 23 hours

About 12 hours

About 10 hours

About 6 hours

Laser Launcher Type

LD

Optical Connector

universal 2.5mm adapter (FC/SC/ST)

Output Wavelength

650nm±10nm

Modulation Frequency

CW / 2Hz

Power

2*AAA dry batteries

Working Temperature

-10℃~+50℃; <90%RH

Storage Temperature

-20℃~+70℃; <90%RH

Dimension & Weight

L120mm×W33mm×H30mm / about 67.8g

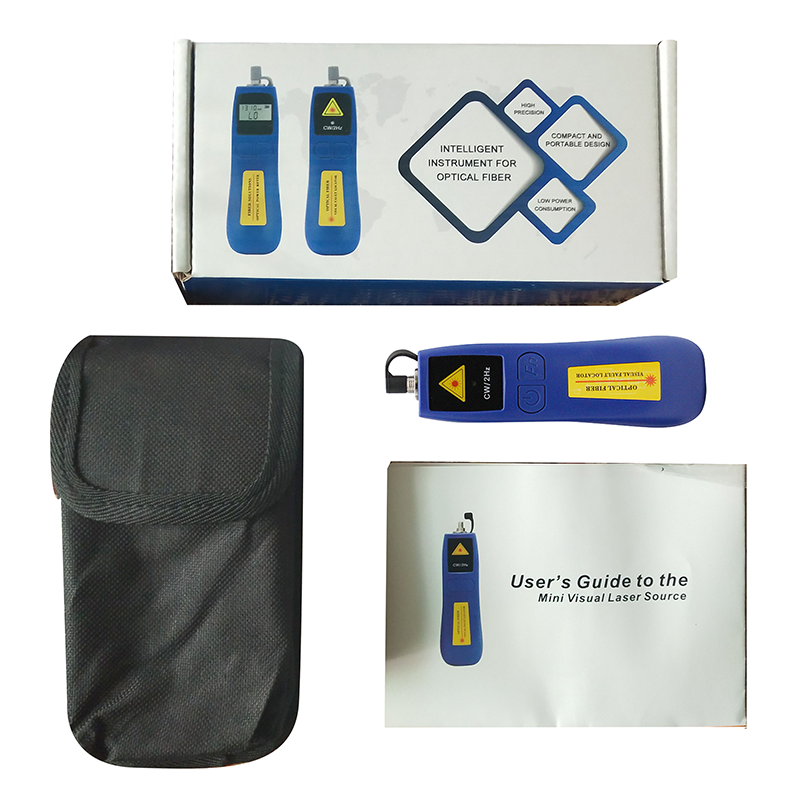

Standard Accessories:

2*AAA batteries, carrying bag, user manual

Optional Accessories:

Male FC to female LC adapter for LC connector
