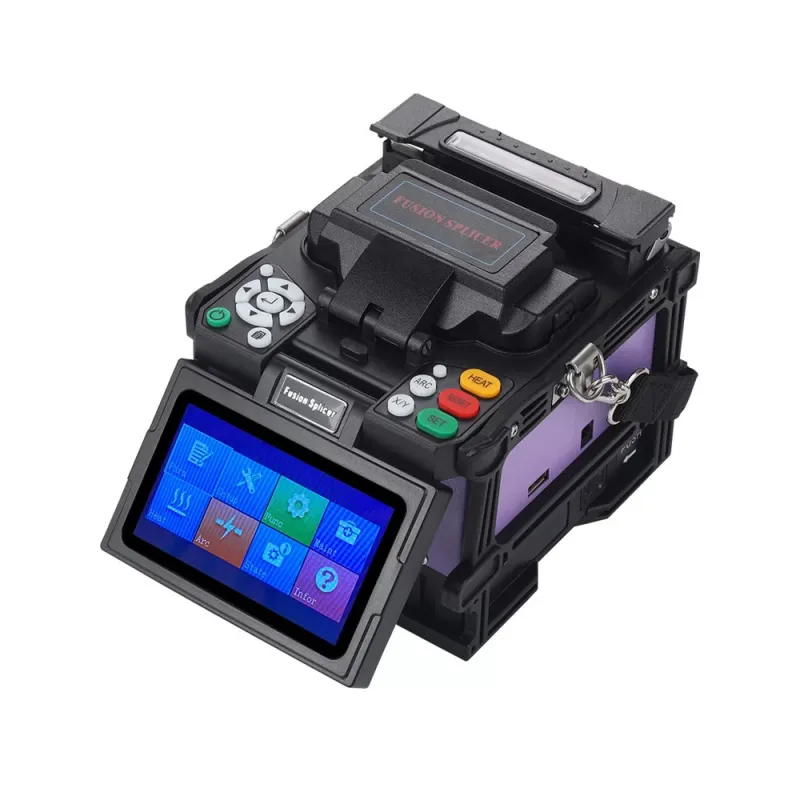

| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80~150μm |
| Coating diameter | 160~1000μm |
| Cleaved length | 5~16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB |
| Return loss | >60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8~2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating condition | Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s |
| Dimension/Weight | 149mm (L)*120mm (W)*127mm (H) /1.90kg (incuding battery) |
| Packages | 42*37*27 cm |
| Weight | 6.5kg |
