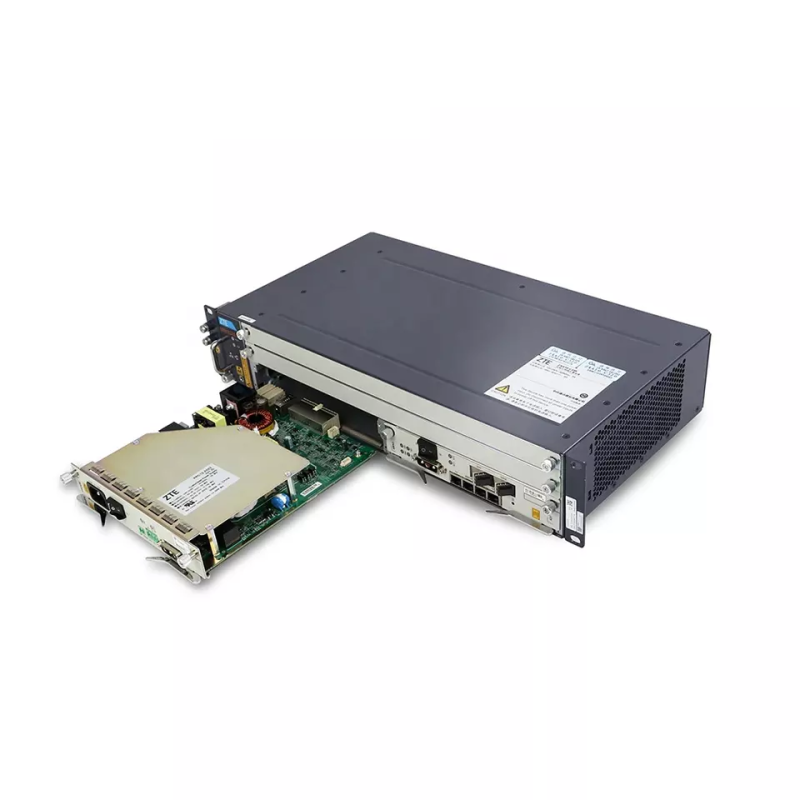

ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS andsecurity reliability.
Meanwhile ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts Nlarge-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
Specification:
| Physical dimension | 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth) |
| Power supply | -48V/-60v dual-channel AC, 220V AC +48V backup power |
| Cabinet | Outdoor/building: EC90EB/EC70E indoor and outdoor integrated cabinets |
| Dedicated machine room: indoor 19-inch standard cabinet | |
| Main control switch board | Panel interface: 1*10GE or GE (optical)+1*GE or FE (optical)+1*GE/FE (electric) +1*maintenance serial port+1*management network port+1*environmental monitoring interface |
| SMXA | Ethernet uplink: maximum support 2*10GE+4*GE or 6*GE |
| Typical business line card | ETGO(8*EPON)/GTGO(8*GPON);ETGH(16*EPON)/GTGH(16*GPON) |
| (2 slots) | FTGK(24/48*P2P) ETTO(8*10G-EPON)/GTXO(8*XG-PON1) |
